HJY-QJ01 Single Shaft Tape Cutting Machine

Short Description:

Machine name: HJY-QJ01 Single shaft tape cutting machine This machine is single shaft cutting machine, used for film, paper, masking tape, adhesive tape, double side tape, PET/PE/BOPP/PVC Ttape and so on.

Product Detail

Product Tags


Machine model HJY-QJ01
Roller width 1300mm/1600mm (It can be customized)
Max cutting  diameter 400mm
Min cutting width 2mm
Air Source 5kg
Rewind core inner diameter 1”-3”
Power source 380V 50HZ 3PHASE(It can be customized)


1. Main driving system: AC motor with inverter are being used.  The acceleration and the deceleration are fast and steady.

2. Operating panel: all functions are operated on the  LCD touch panel. you can set all  kinds of cutting and running condition .

3. Central control unit: programmable central control is used and 20 sizes can be set on the same shaft for automatic transfer and cutting.

4. Cutting positioning system: cutting positioning is controlled by Mitsubishi servo motor. it is accurate and steady. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

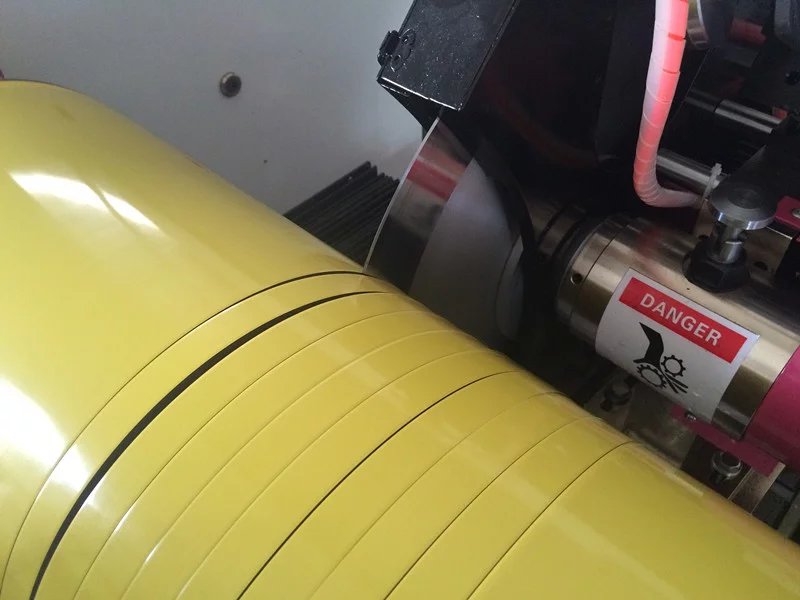

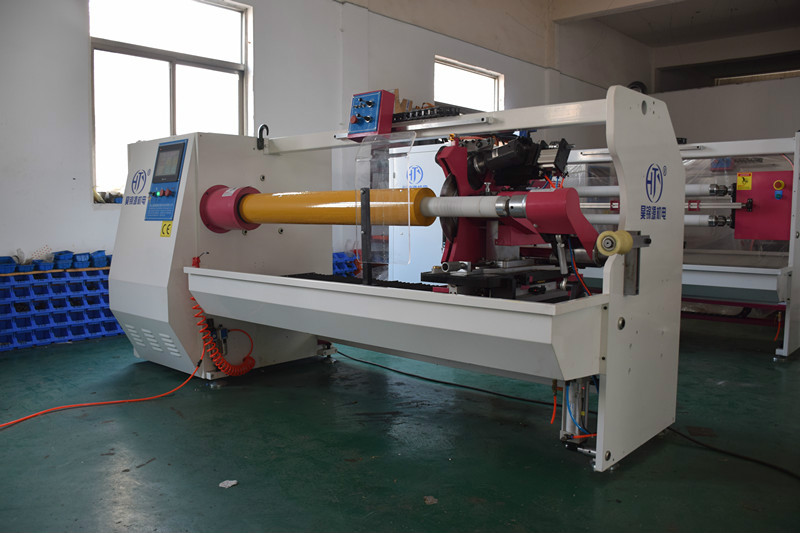

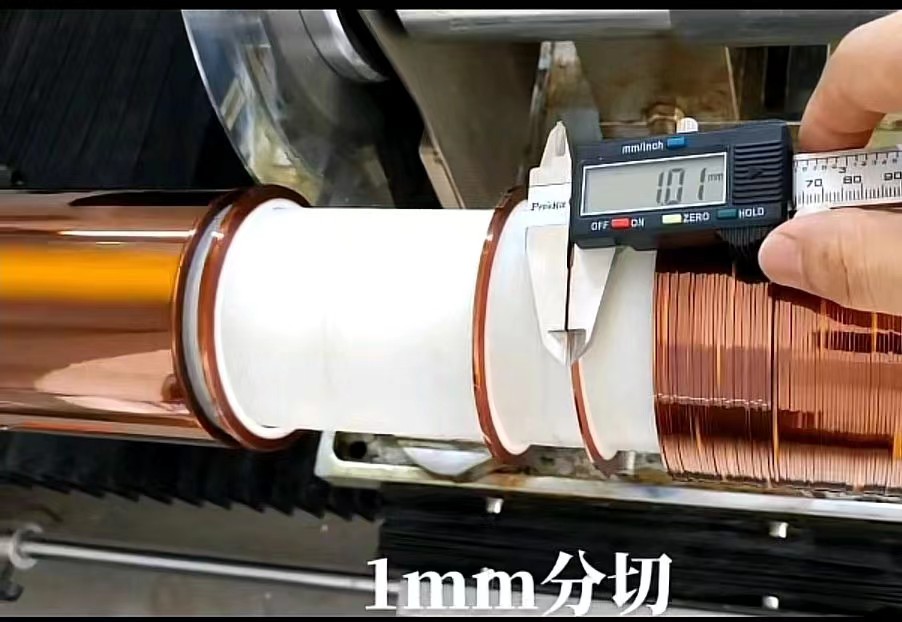

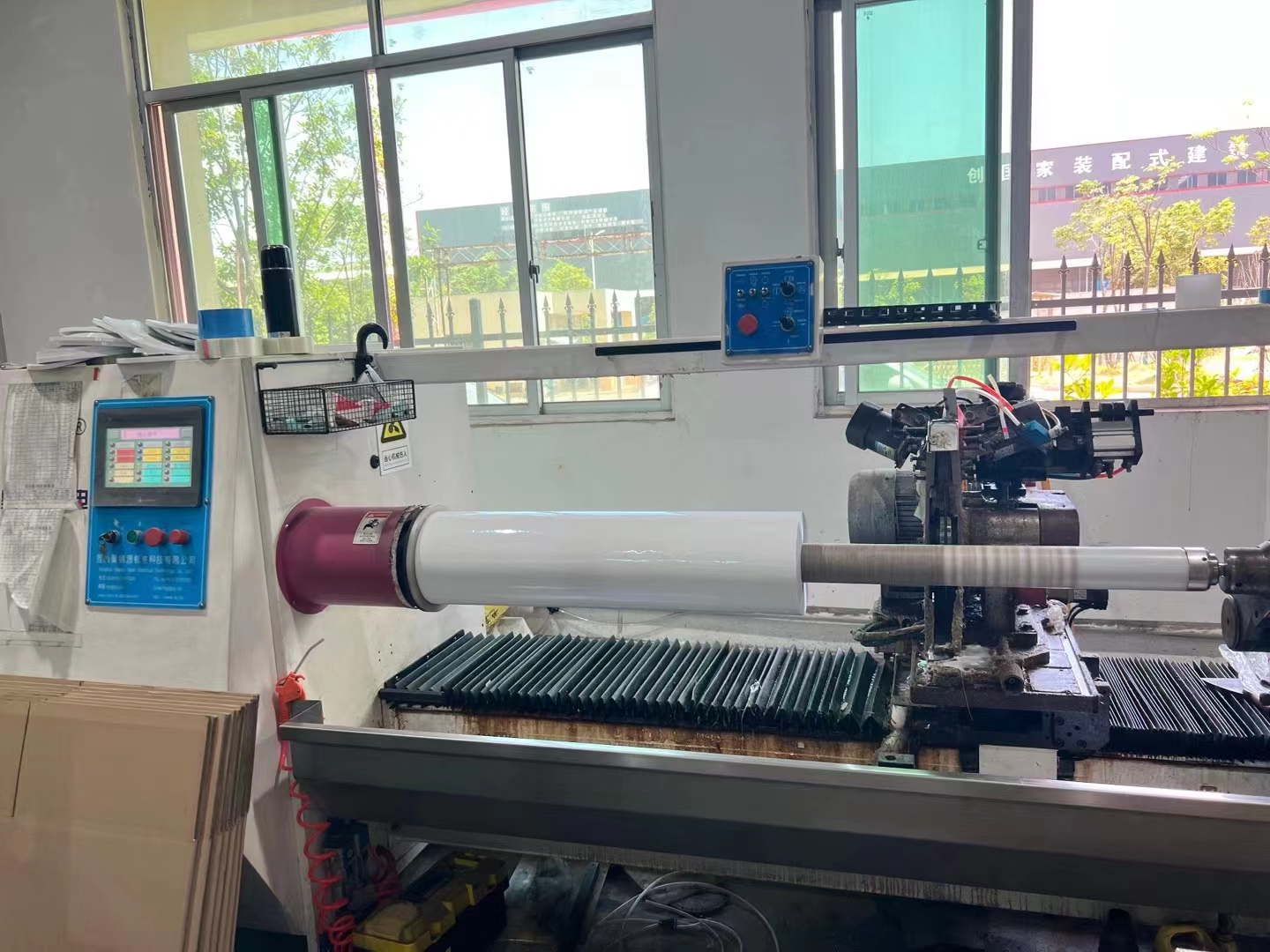

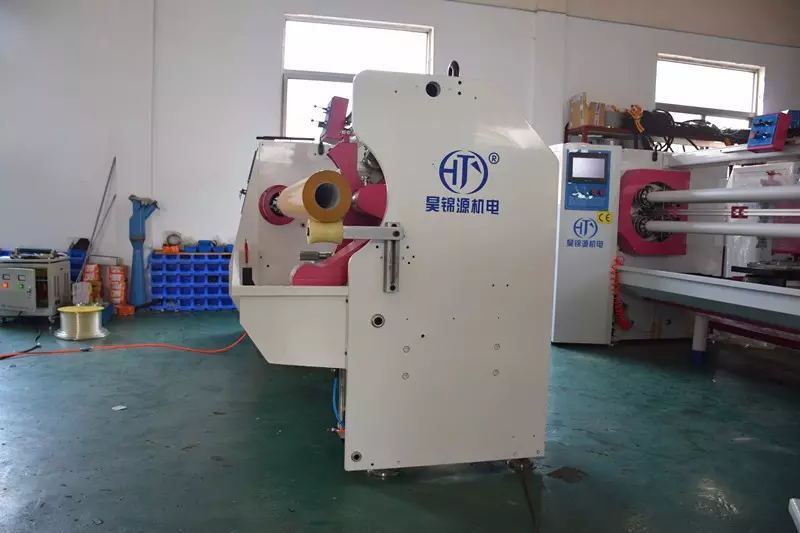

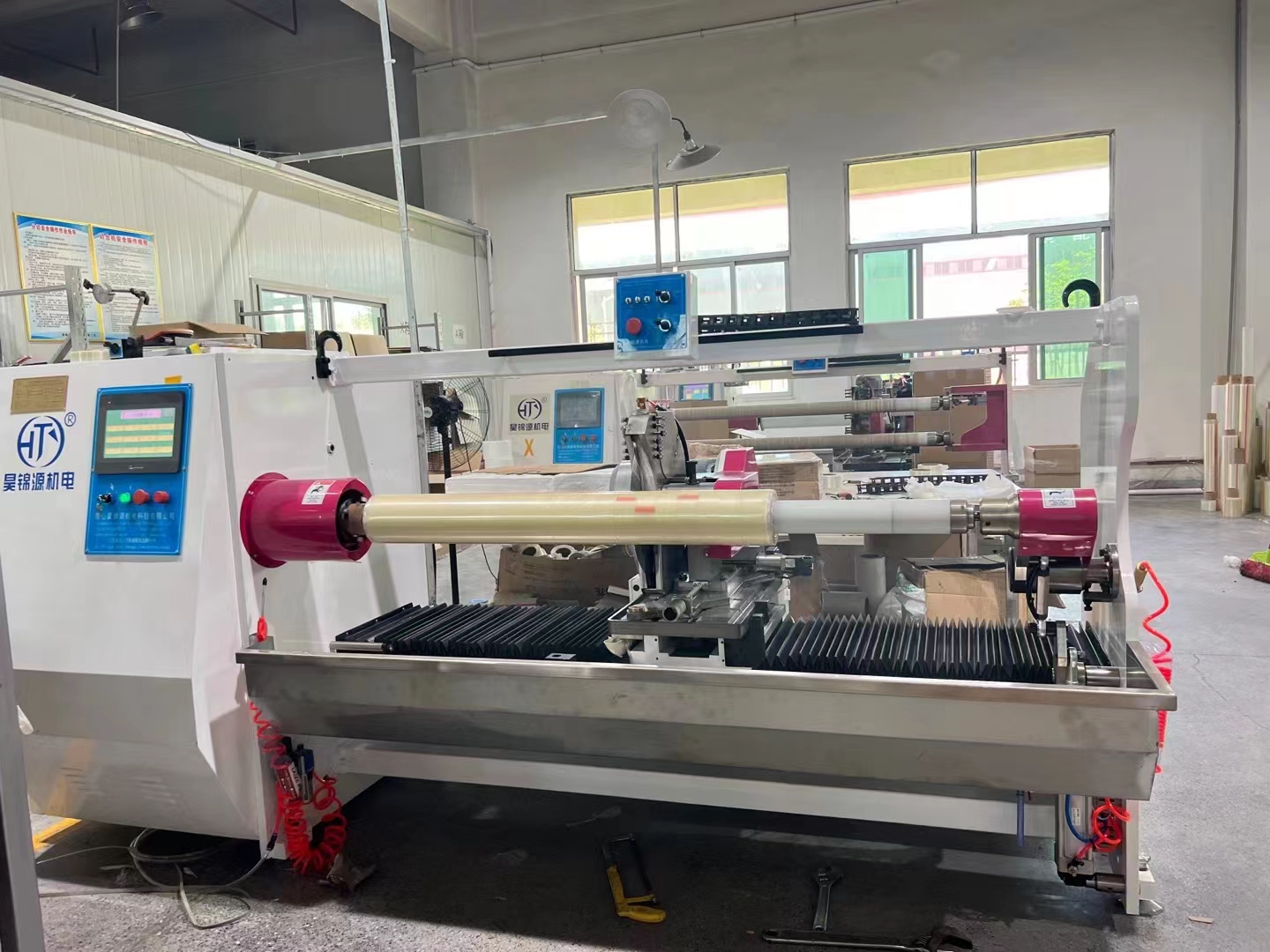

Detail Photos


Package & Shipping

Package & Shipping: All products will be packed in wooden boxes and deliver from ShangHai Port.

Payment terms: T/T, 30% deposit after confirm the order, 70% balance paid before shipment.

Time of delivery: Within 45 workdays after receiving your order depoist.


1. Are you factory?
Yes! We are the professional manufacturer in China for more than 10 years. Welcome to visit our factory.

2. Can I customize according to the requirements of me?
Yes! Our engineer has over than 20 experiences in this area.Just tell us your detail requirements.

3. If I didn't use press machine before, how can I install and operate the machine?
We will delivery machine with user manual in English.
We will send you videos too.
