Hjy-Fq08 High Quality Large Diameter Roll Pet Tape Industry Tape Slitting Rewinding Machine

Short Description:


Product Detail

Product Tags

Specifications

Machine width 1300mm/1600mm
Max unwind diameter 1000mm
Min slitting width 15mm
Max rewind diameter 650mm
Paper core I.D 1"-3"
Speed 300M/min
Voltage 380V 50HZ 3Phase



Application

Slitter rewinder tape is suitable for slitting rewinding soft material like tape,paper ,film, non-woven, bopp, film, label paper, etc.

Application

Slitter rewinder tape is suitable for slitting rewinding soft material like tape,paper ,film, non-woven, bopp, film, label paper, etc.

Features

1. The motor unit adopts three-motor connective control, and the rewind system can make tension and differential shaft line speed control.

2. The unwind unit is shaft separated type with auto tension control and EPC system.

3. The rewind shaft tension adopts individual differential control, and automatically adjusts difference of each roll when the material thickness is not average.

4. Finished product is taken out with connect type frame to help unloading to save time and improve efficiency.

5. with shear blade driving device.

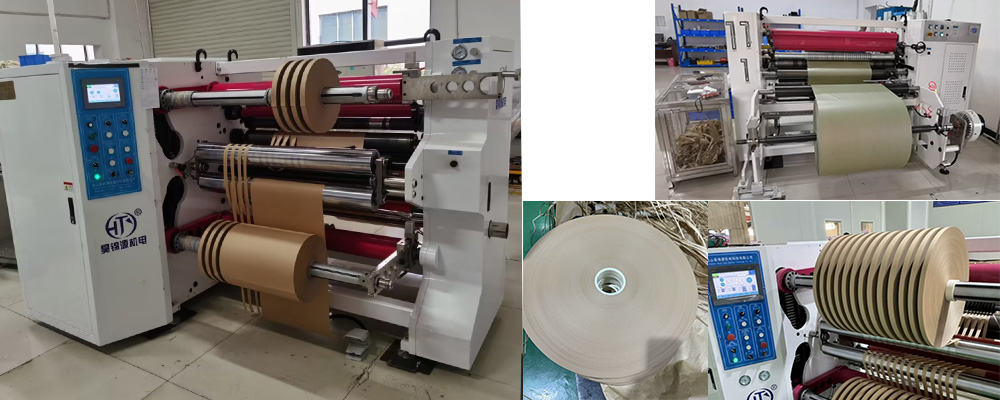

Detail Photos

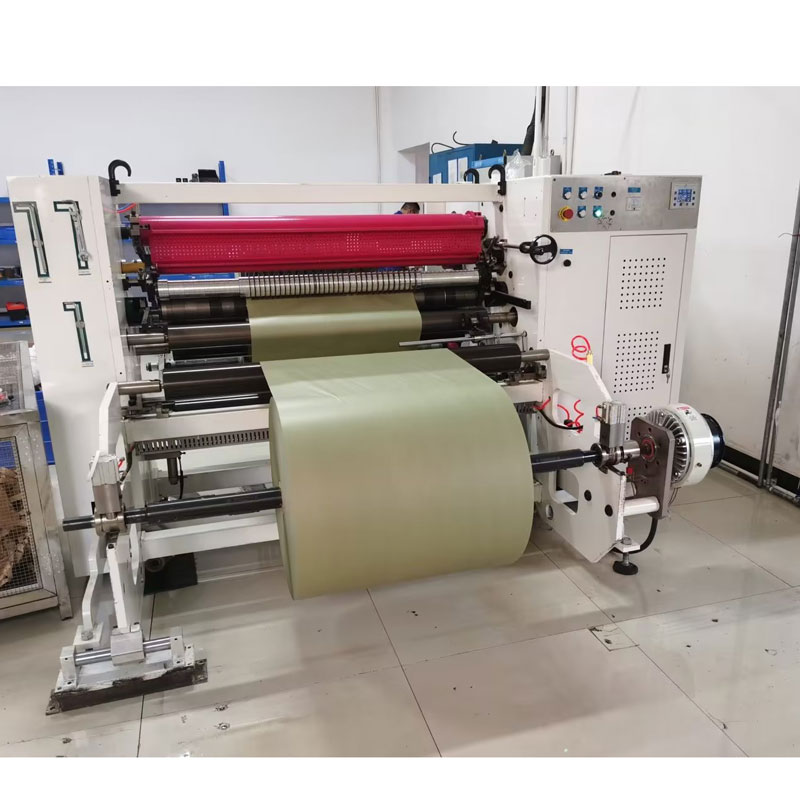

Hjy-Fq08 High Quality Large Diameter Roll Pet Tape Industry Tape Slitting Rewinding Machine (4)
Hjy-Fq08 High Quality Large Diameter Roll Pet Tape Industry Tape Slitting Rewinding Machine (3)
Hjy-Fq08 High Quality Large Diameter Roll Pet Tape Industry Tape Slitting Rewinding Machine (8)

Video

Optional Parts

1. Shaftless unwind base: uplifting type with chucks to save loading time and improve efficiency

2. Connect type paper receiving platform: for more smooth edge and reducing material waste.

3. Slitting blade can use air blades.
