HJY-QJ01A Double-shaft Roll Changing Automatic Tape Cutting Machine

Short Description:

Machine name: HJY-QJ01A Double-shaft roll changing automatic tape cutting machine

This machine is double-shaft roll changing automatic tape cutting machine, used for film, paper, masking tape, adhesive tape, double side tape, PET/PE/BOPP/PVC Ttape and so on.


Product Detail

Product Tags

Specifications

Machine model HJY-QJ01A
Roller width 1300mm/1600mm
Max cutting  diameter 160mm
Min cutting width 2mm
Air Source 5kg
Rewind core inner diameter 1”-3”
Power source 380V 50HZ 3PHASE(It can be customized)

Features

1. Main driving system: AC motor with inverter is employed.

2. Operating panel: All functions are operated on the 10" LCD touch panel.

3. Blade feeding positioning system: Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

4. Auto angle adjustment of circular blade: Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (The angle change range is ±8°).

Detail Photos

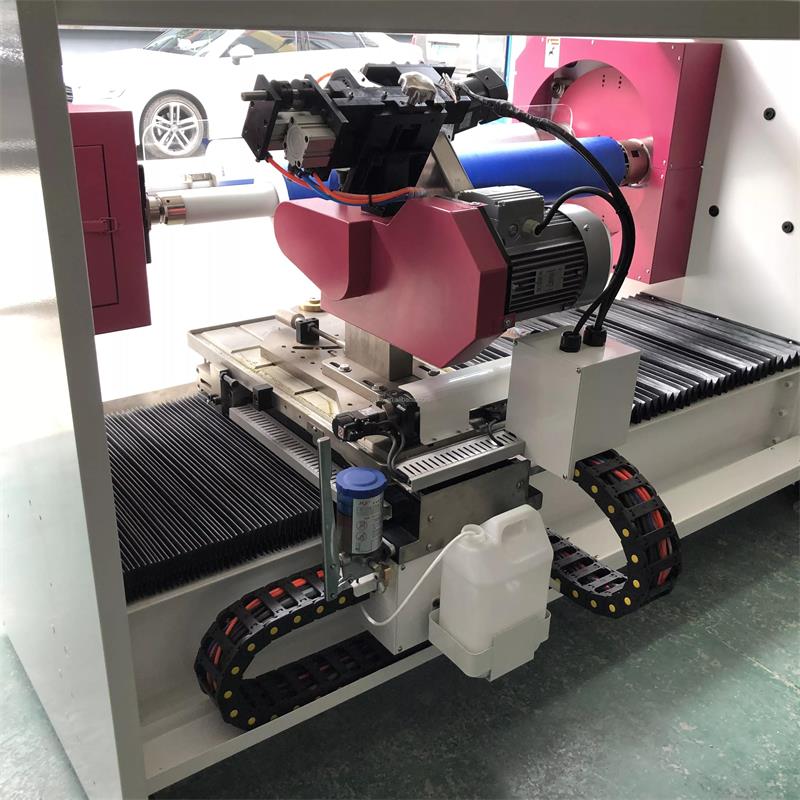

HJY-QJ01A Double-shaft Roll Changing Automatic Tape Cutting Machine4
HJY-QJ01A Double-shaft Roll Changing Automatic Tape Cutting Machine3
HJY-QJ01A Double-shaft Roll Changing Automatic Tape Cutting Machine5

Package & Shipping

Package & Shipping: All products will be packed in wooden boxes. We deliver from ShangHai.

Payment terms: T/T, 30% deposit after confirm the order, 70% balance paid before shipment.

Time of delivery: Within 45 workdays after receiving your order depoist.

FAQ

1. Are you factory?
Yes! We are the professional manufacturer in China for more than 10 years. We have many foreign customers.

2. What is after-sales services?
We will give you 24 hours around the clock and 12 months warranty and Life-long maintenance service for the product. Whenever you need, we will be here.

3. If I didn't use press machine before, how can I install and operate the machine?
We will delivery machine with user manual in English. We also can provide you online help.
