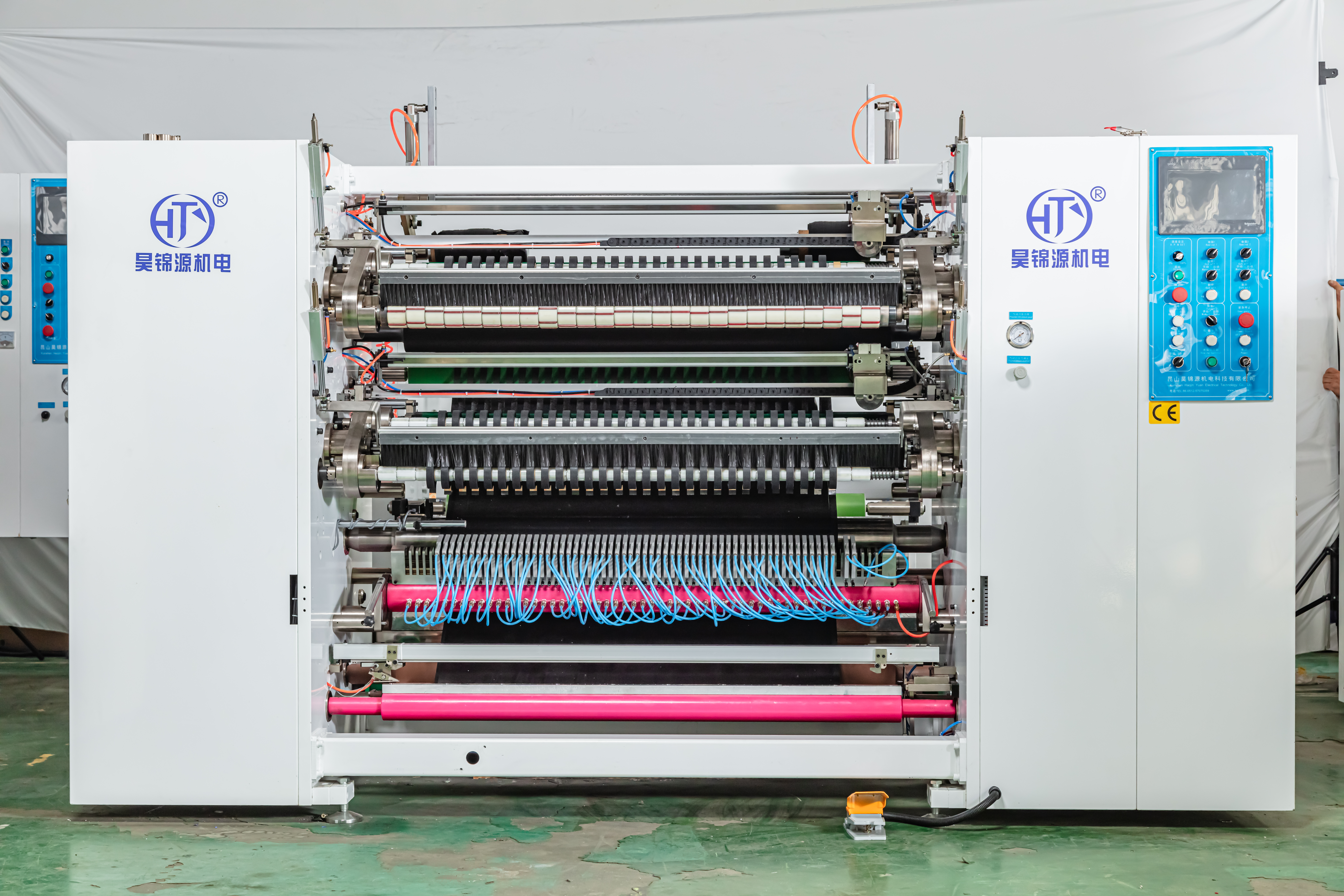

HJY-FQ09C Four Shaft Automotive Wire Harness Tape Slitting Rewinding machine

Short Description:

Suitable for slitting rewinding automative wire hareness tape, sports tape, etc.

Product Detail

Product Tags

Specifications

WORKING WIDTH	1020 mm
UNWIND DIAMETER	1000 mm
SLITTING WIDTH	12mm – 1020 mm
REWIND PAPER CORE I.D	1” -1.5"
REWIND DIAMETER	150 mm
SLITTING KNIFE	Air score blade/zigzag air score blade/ razor blade (optional)
MACHINE SPEED	120 m/min
ACCESSORIES	Automatic Core loading & unloading device

Features

1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.

2. Japan Mitsubishi PLC control system with 7” touch panel operation.

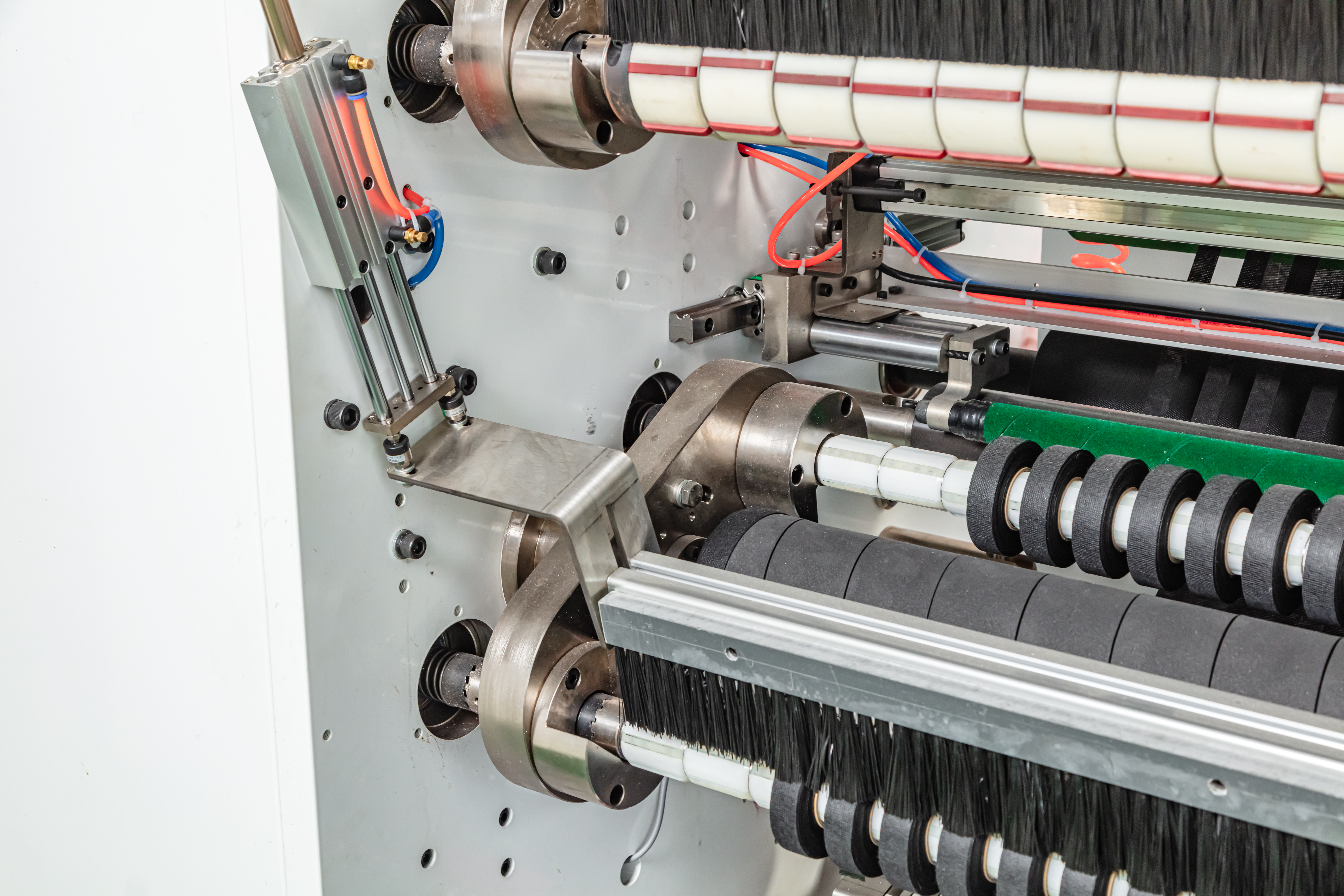

3. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations.

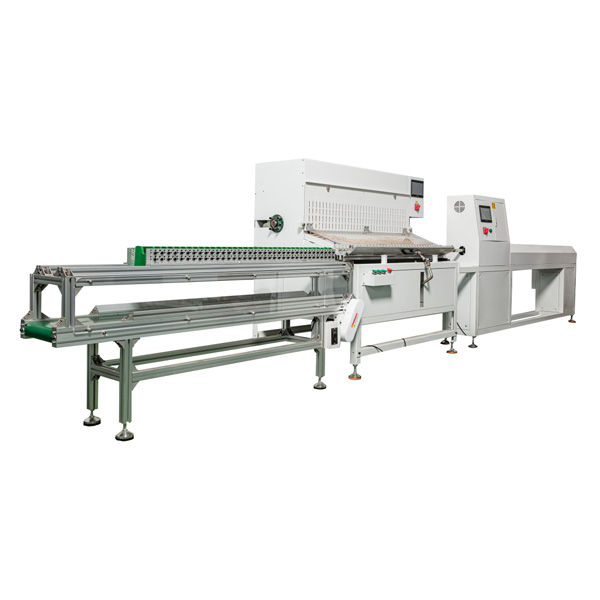

4. Automatic Core loading machine and one set of size setting mould available with the slitting machine

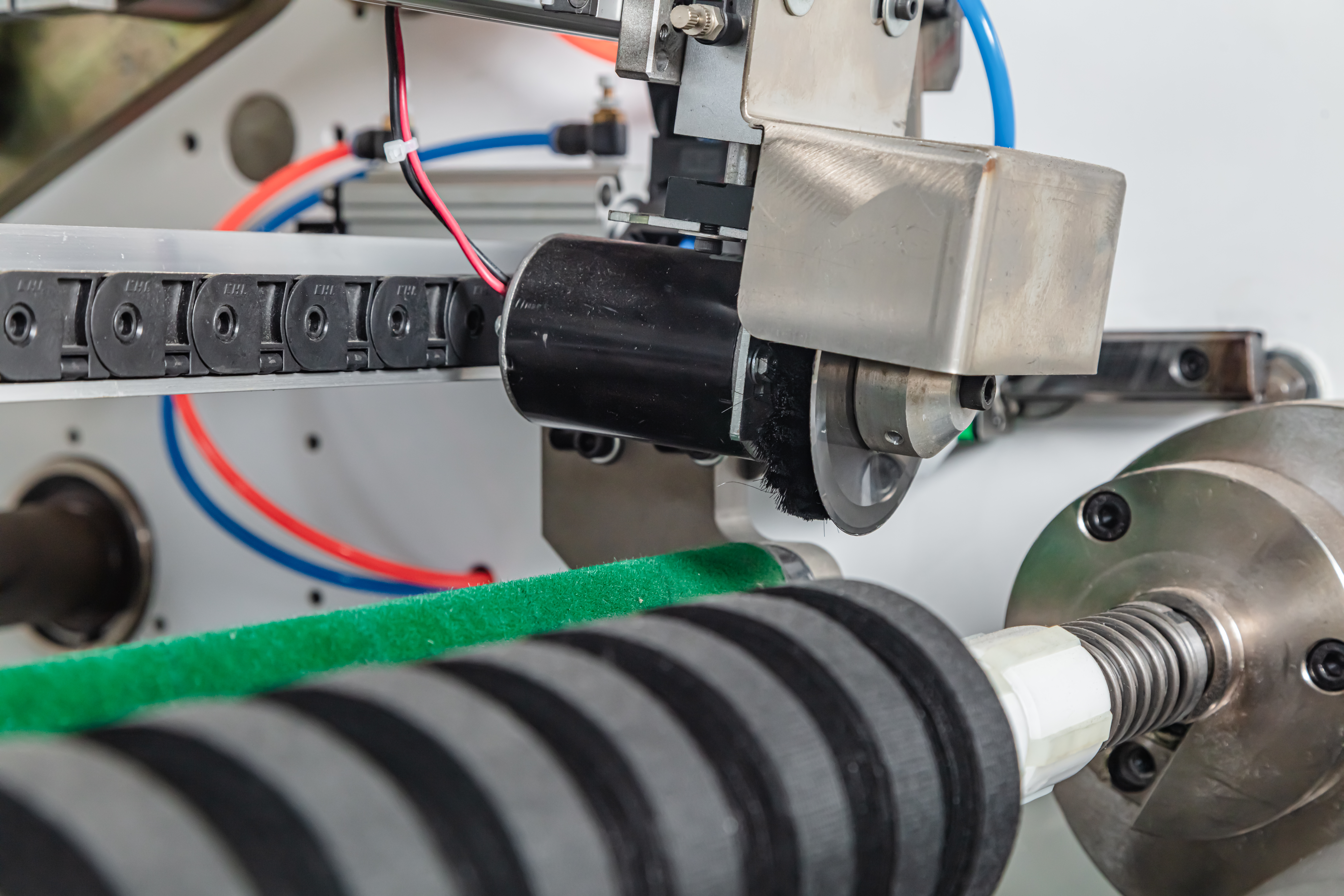

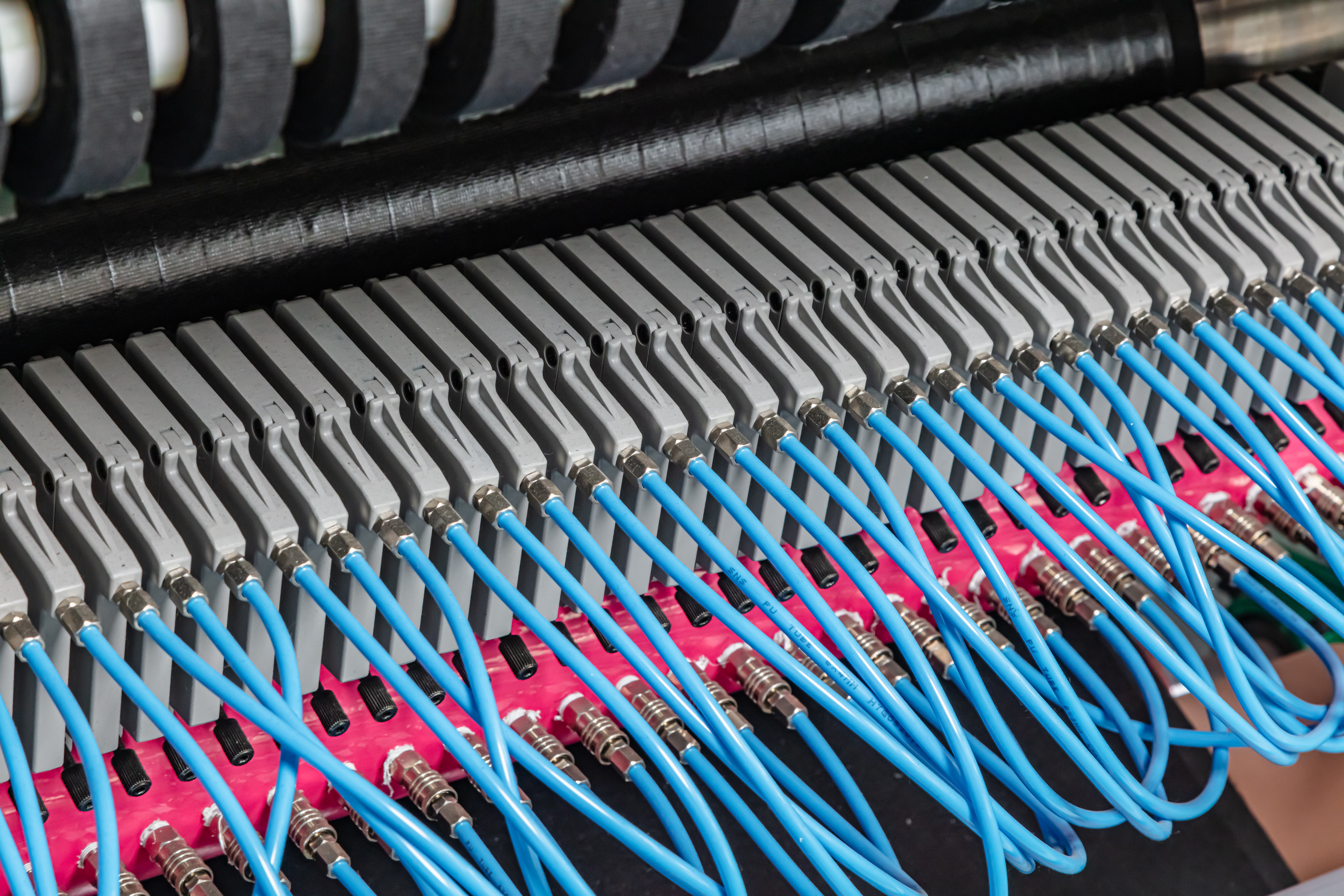

5. Slitting tool: regular air blades and zigzag type air blades also available. The knife positions can be adjusted in left/right directions and the pressure of the air blades can be adjusted to suit tape material variation.

6. Spool trim winding system is used for edge trimming collecting.

7. Rewind shaft: customer can choose 1” -1.5" air shafts or traditional nylon sleeve type rewind shafts
