HJY-MD01 Knife Grinding Machine

Short Description:

Machine name: HJY-MD01 Knife grinding machine.

Suitable for Grinding various sizes of circular blades.It is easy to operate.


Product Detail

Product Tags

Specifications

Machine Model HJY-MD01
CIRCULAR BLADE I.D. Φ17 /Φ22/Φ25.4mm
CIRCULAR BLADE O.D Φ55mm---Φ450mm
GRINDING ANGLE 0°—45°
VOLTAGE 220V 50HZ

Features

● Main motor: 1/4HP AC motor (Taiwan).

● Big knife edge: 3/4HPAC 2880RPM, Angle adjustment range: +/-15 (Taiwan).

● Small knife edge: 1/8HPAC 2950RPM, Angle adjustment range: +/-15 (Taiwan).

● Circular blade could be moved in all directions with the upper, lower, right and left dovetail, realizing the multi-angle grinding and sharping operation.

● It is euipped with diversified blade clamp and thus can grind various circular blades.

● Cooling system motor: 1/8HPAC 2850RPM (Taiwan).

● Round knife chuck: Φ 100/Φ 158/Φ 198/Φ 240/Φ 275.

Detail Photos

HJY-MD01-1

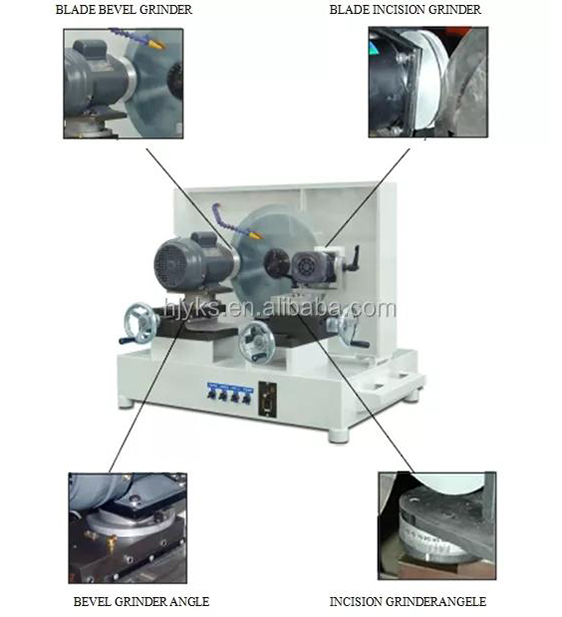

HJY-MD01-2

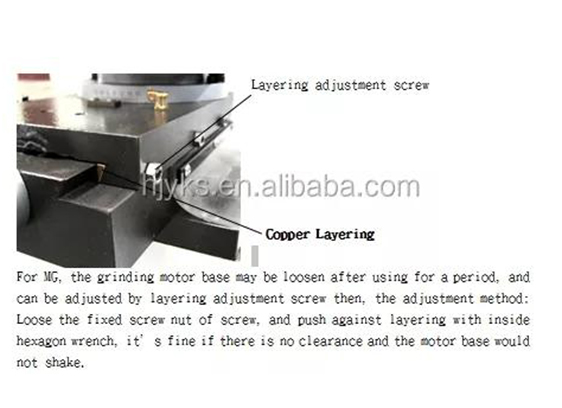

HJY-MD01-3

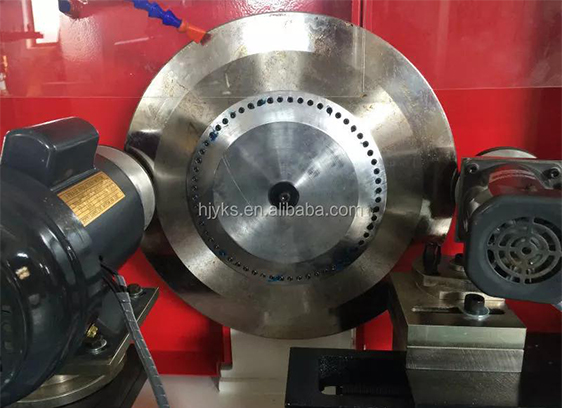

HJY-MD01-4

Package & Shipping

Package & Shipping: It will be packed in wooden case.We deliver from ShangHai Port.

Payment Terms: We use T/T  payment , 30% deposit after confirm the order, 70% balance paid before shipment.

Time of Delivery: Within 60 workdays after receiving your order depoist.We will deliver the machine as soon as possible.

FAQ

1. Are you factory?
Yes! We are the professional manufacturer in China for more than 10 years.

2. Can I customize according to the requirements of me?
Of course!Just tell us your requirments. Our engineer can customize according to your requests.

3. What is after-sales services?
We will provide 24 hours service for you. Whenever you need,you can contact us.

4. If I didn't use press machine before, how can I install and operate the machine?
We will delivery machine with user manual in English. If you still have puzzles, we can told you online.

5. Where are you factory?
Our factory address is: Room3, No.10, Songhu East Road, Zhangpu Town, Kunshan City, Jiangsu Province, China. Welcome to our factory!
