Automatic ten shafts turreted cutting machine /adhesive tape cutter/ masking tape making machine

Short Description:

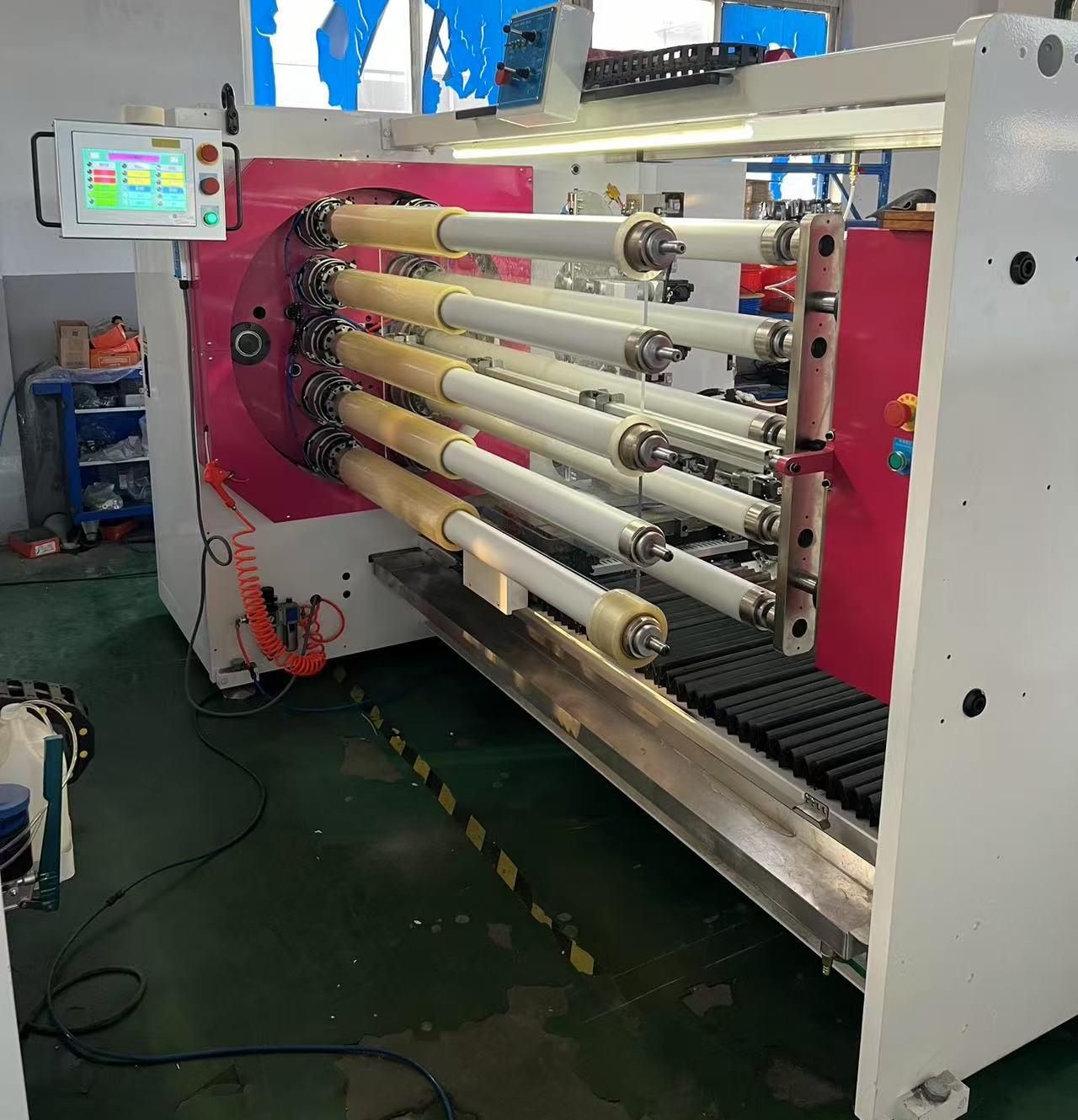

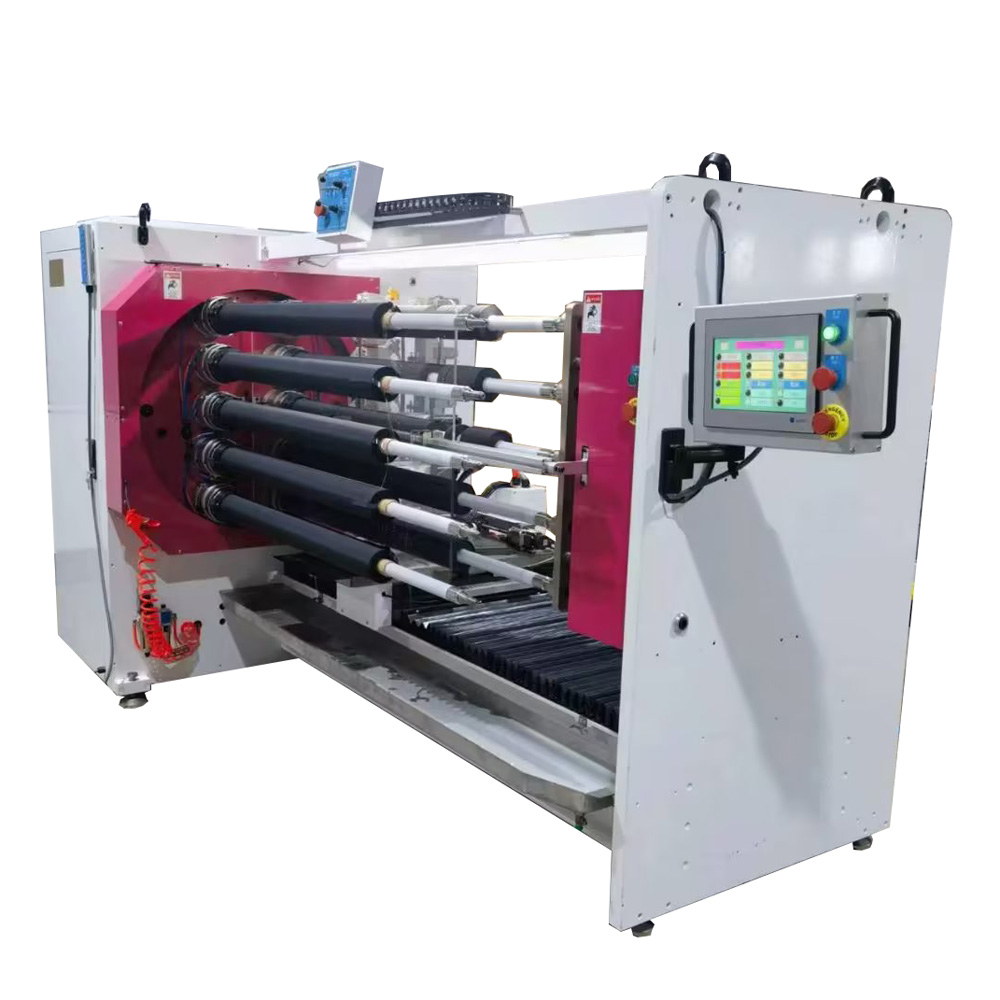

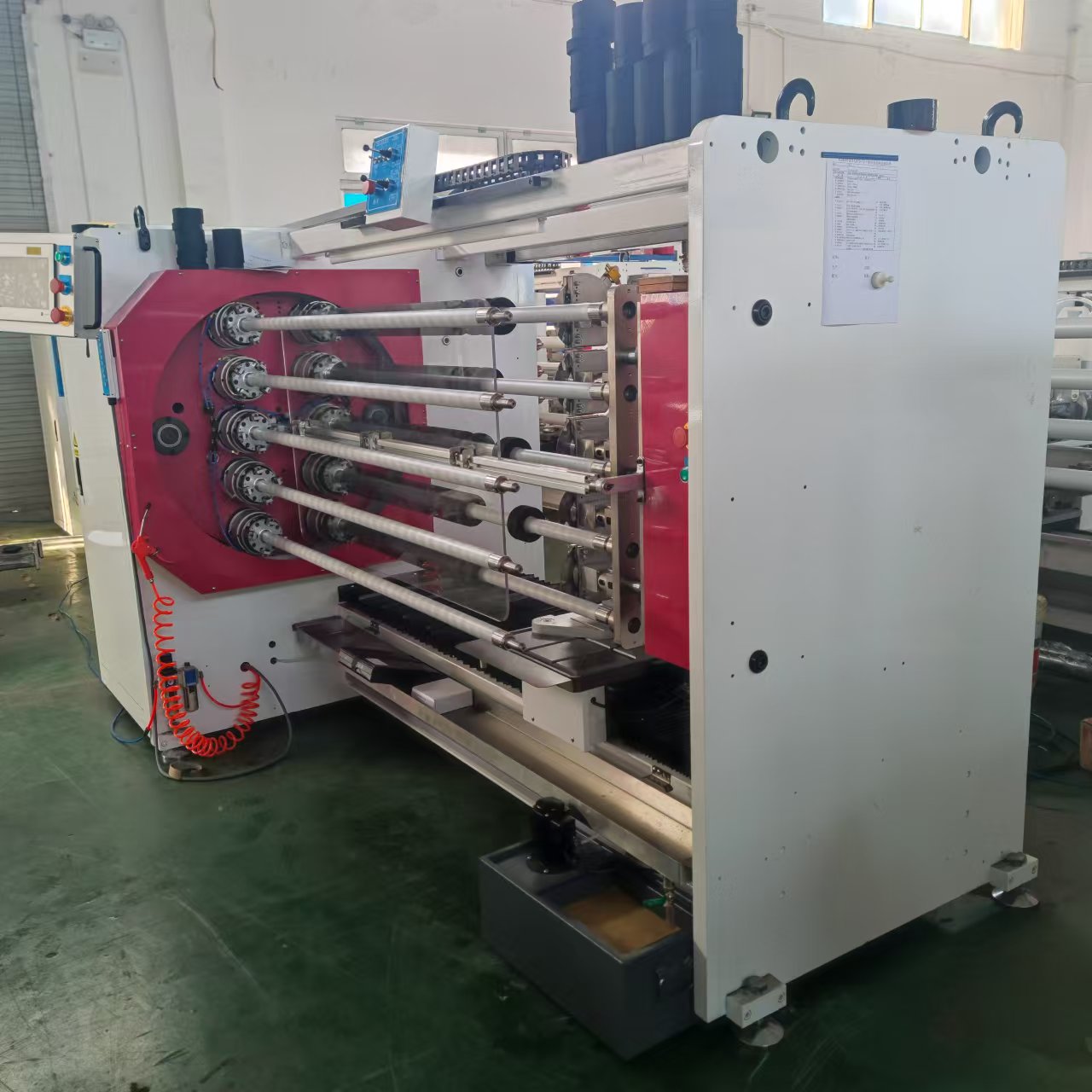

Ten shafts log roll tape slitting machine has turret exchange system, suitable for high speed cutting log rolls of wire harness tape, PVC insulation tape, masking tape , double sided tape, duct tape, aluminum foil tape, etc.Main Features
1.Main driving part: AC motor with frequency converter is employed. The acceleration and the deceleration are fast and steady.
2. Central control unit: programmable central control is used and various sizes can be set on the same shaft for automatic
transfer and cutting.

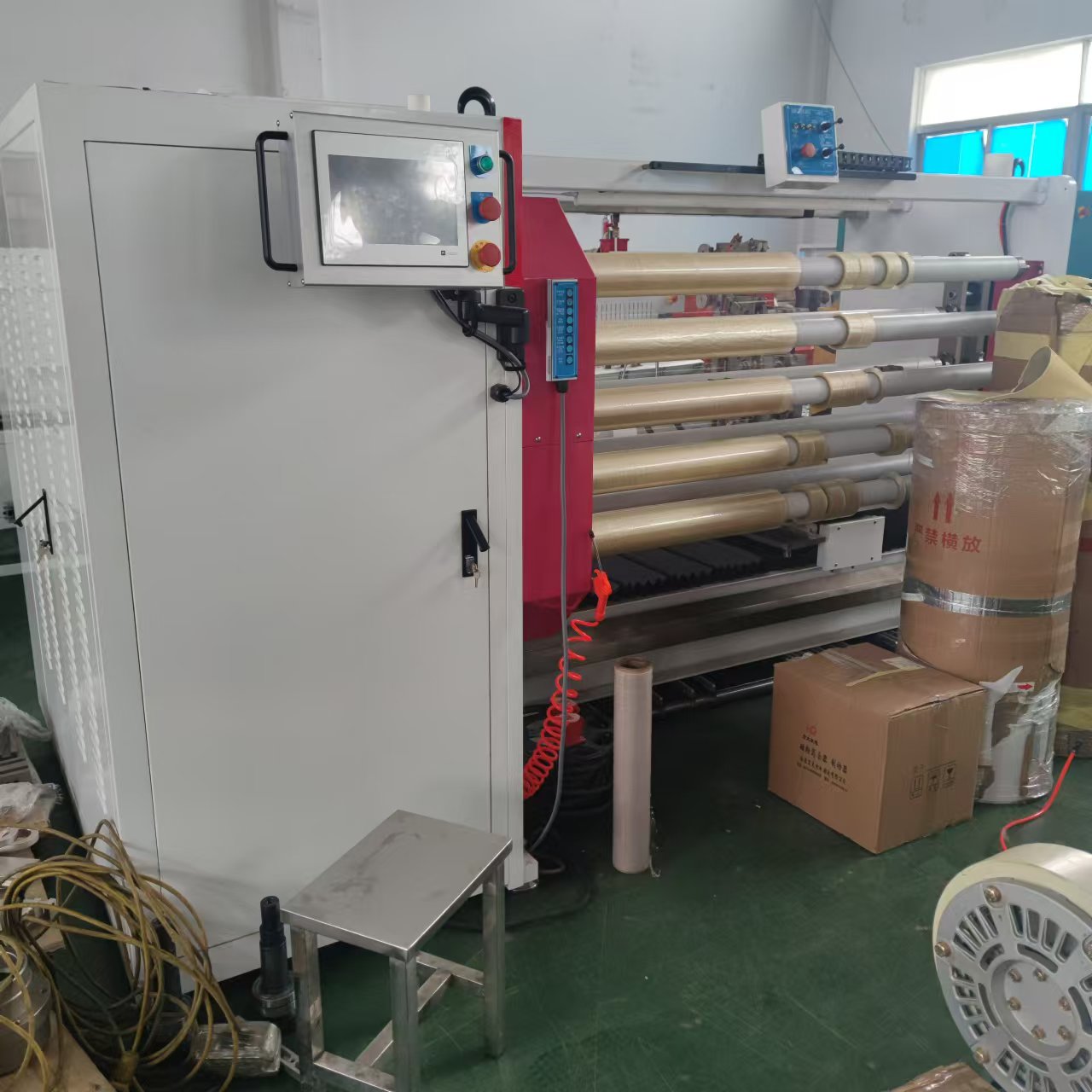

3. Operating panel: all functions are operated on the LCD touch panel.
4. Motor control system: the central control system is PLC programmable controller. Various sizes can be set on the same shaft,and the cutting width is adjusted automatically.

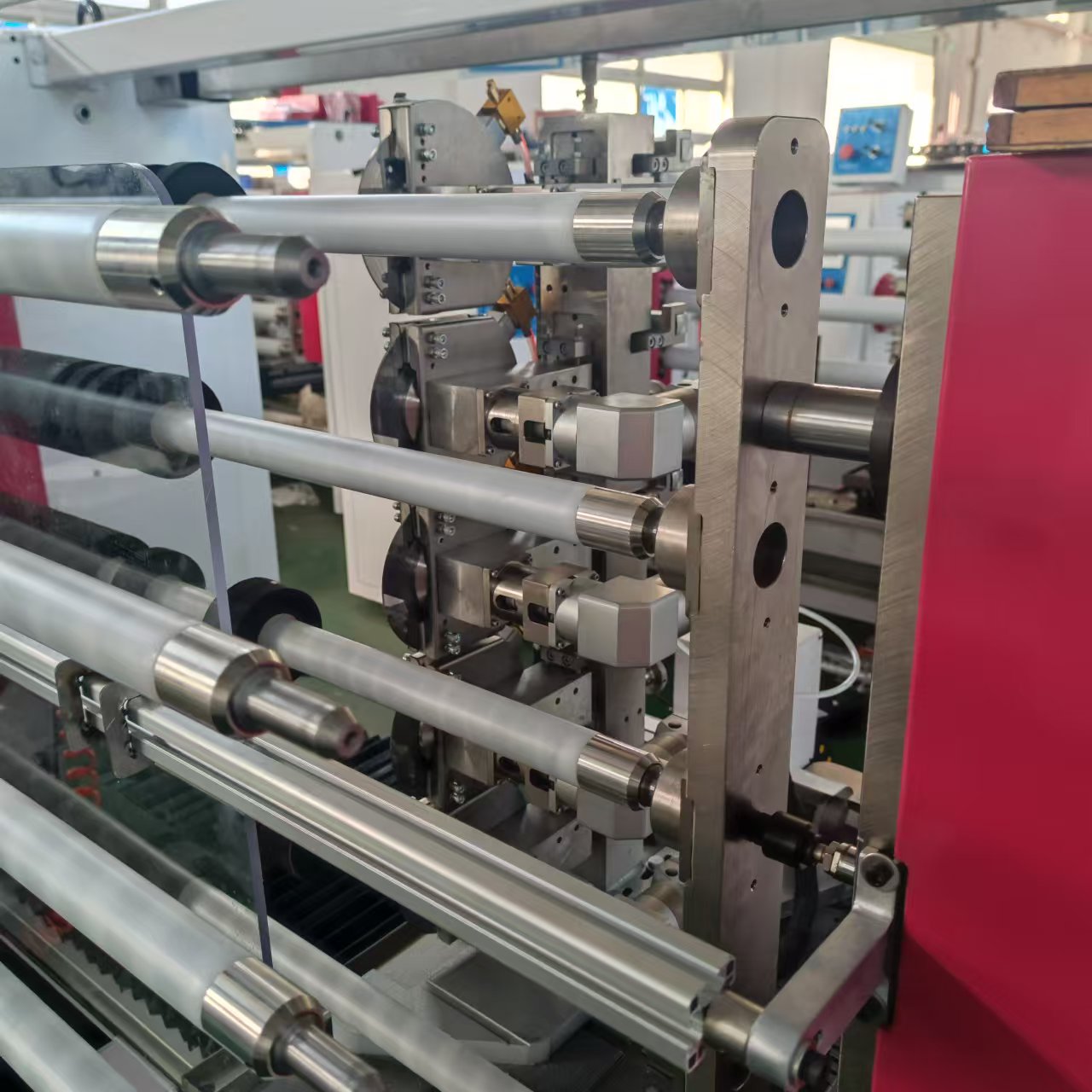

5. Cutting positioning system: cutting positioning is controlled by servo motor. The imported high precision enlarge to ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
6. Blade feeding positioning system: blade feeding is controlled by servo motor, and the cutting speed is adjustable in three stages. The efficiency is improved and the best quality is guaranteed.
7. Auto angle adjustment of circular blade:servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.

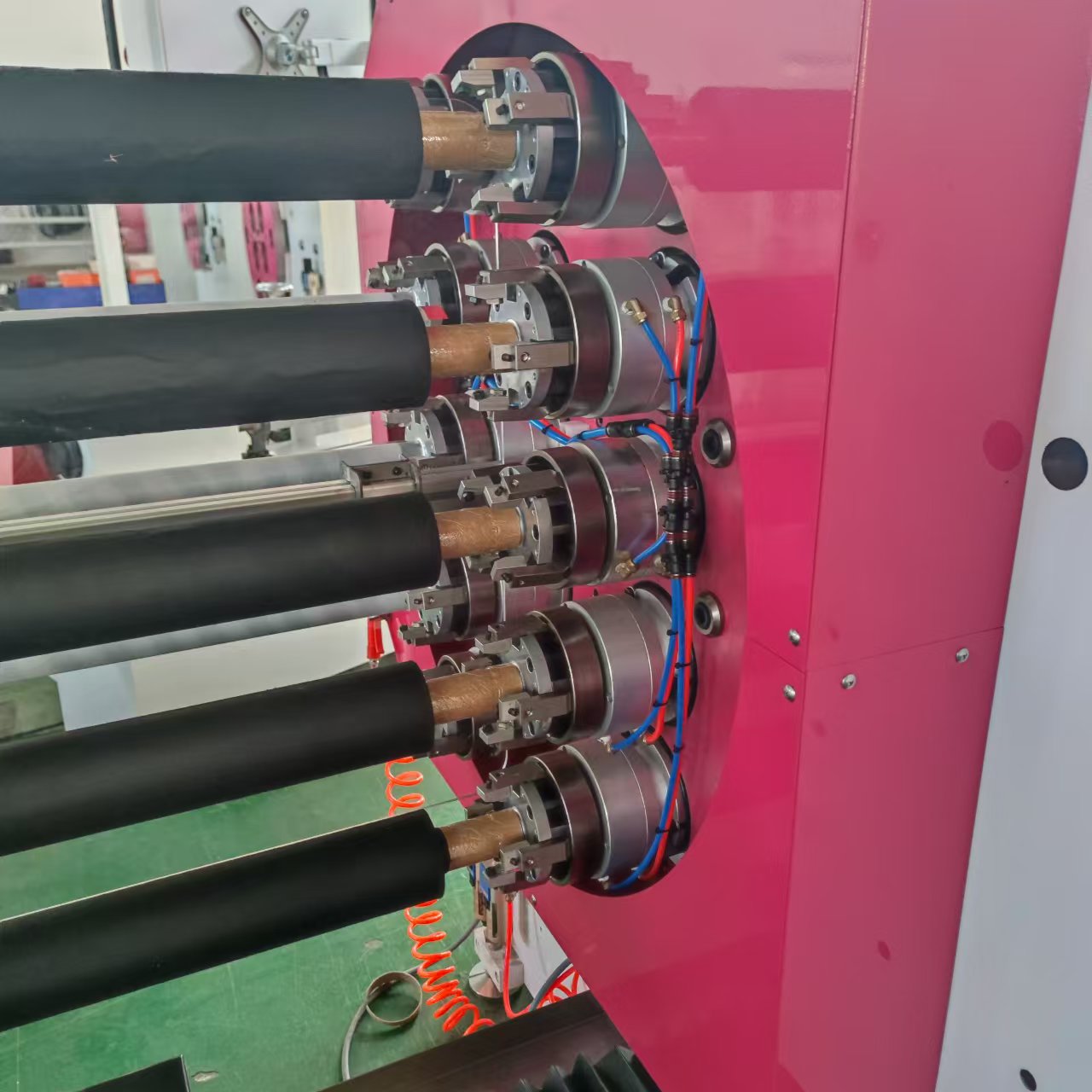

8. Quick shaft change system: three kinds of shafts are available and quick change of shafts is applied for different materials.

Main Technical Parameter
Machine width
1000mm, 1300mm, 1600mm
Max. Cutting O.D.
150 mm
Inner core I.D.
1″ – 3″
Min. Cutting width
3mm

Product Detail

Product Tags

Ten shafts log roll tape slitting machine has turret exchange system, suitable for high speed cutting log rolls of wire harness tape, PVC insulation tape, masking tape , double sided tape, duct tape, aluminum foil tape, etc.
